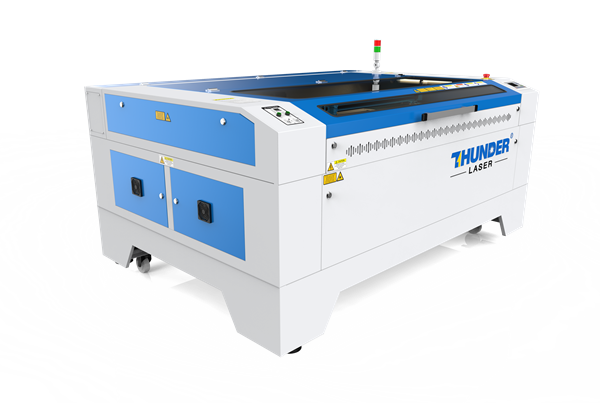

Nova Plus Series
Starting at: £7,995
-
One Year Warranty -
Every Day Fair Pricing
-
UK-Based Customer Service
Features:
- RF laser tube, far more efficient than glass when engraving
- Up to 4x faster and cleaner engraves than hobbyist machines
- 80w RF tube cuts up to 3/4″ wood or 1″ acrylic
- True enterprise-grade quality for a fraction of the cost
- Precision and power in a compact desktop design
- Military-grade strength for durability and reliability
- Easy-to-use touchscreen controls for seamless operation
- 1GB memory and high-resolution camera for detailed work
- Rotary capabilities for engraving on curved surfaces
- Multiple safety features, suitable for young makers
The right machine at the right price
Interested in financing your machine?
Great value for every Creator
Product Features
Fast and Precise
- 1,200mm/s max engraving speed, 2.5G acceleration
- Up to 4x faster than Glowforge or P2
- High-res RF metal source for up to 2,000dpi with 1.5″ lens
Extras at a Great Price
- Motorized Z-Table, up to 6.1″ max part height
- Integrated camera
- Auto-Focus and Red Dot Pointer
- Rotary-Capable for cups

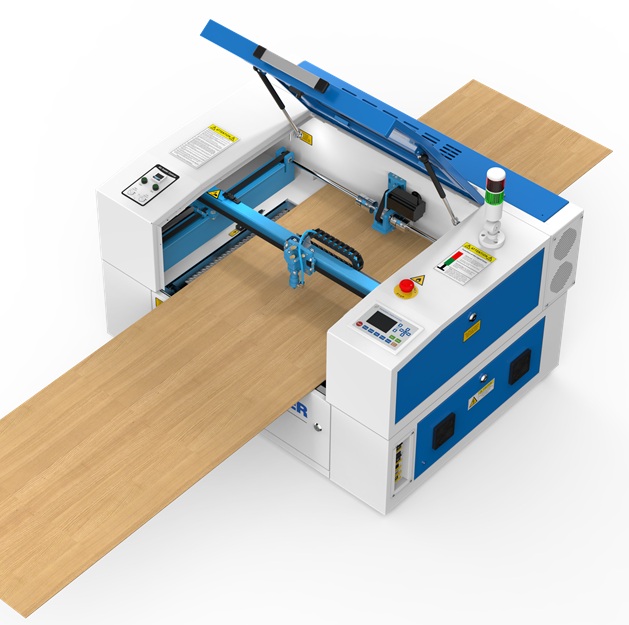

- Front and Back Pass Through for Larger Objects
All-Enclosed Design
- Integrated exhaust
- Air-cooled laser tube – no chiller required
- Built-in crumb tray to catch the scraps
Industrial-Grade

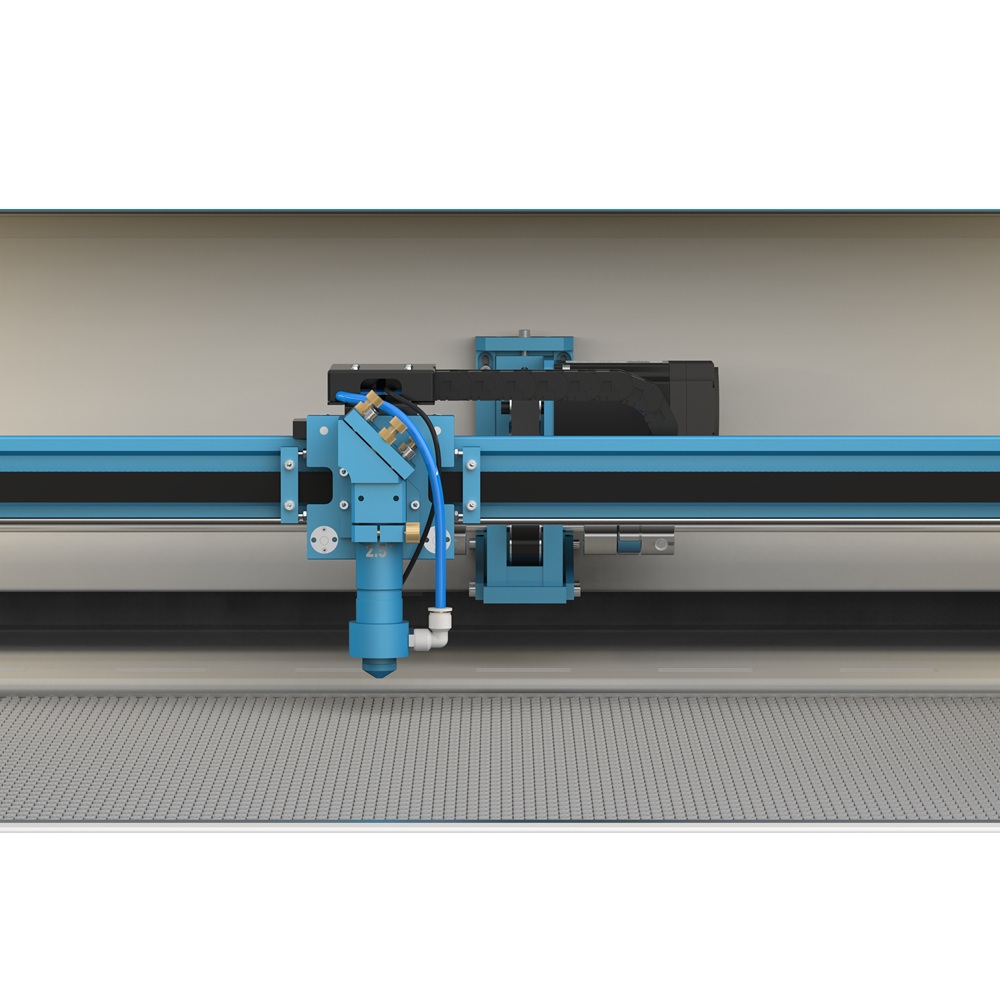

- Durable gantry ensures high-quality engravings
- Made with highest-quality parts
- Heat Alarm + Other Safety Features
Specifications / Comparison
Take a closer look at what the Nova Plus series has to offer.
Specification
Nova Plus 24
Nova Plus 35
Nova Plus 51
Nova Plus 63
Engraving / Working Area
23.6″ x 15.7″ x 6.1″
35.4″ x 23.6″ x 8.9″
51.2″ x 35.4″ x 8.9″
63.0″ x 39.4″ x 8.9″
Max Part Size
Pass through closed: 24.2″ x 18.5″ x 6.1″ | Pass through open: 24.0″ x ∞ x 0.8″
Pass through closed: 36.6″ x 25.6″ x 8.9″ | Pass through open: 37.8″ x ∞ x 0.8″
Pass through closed: 55.1″ x 40.6″ x 8.9″ | Pass through open: 55.1″ x ∞ x 0.8″
Pass through closed: 66.9″ x 44.5″ x 8.9″ | Pass through open: 66.9″ x ∞ x 0.8″
Machine Size（L*W*H）
44.1″ x 34.1″ x 26.9″
59.8″ x 45.3″ x 43.9″
74.8″ x 55.3″ x 40.9″
86.6″ x 59.3″ x 40.9″
Laser Wattage
60W RF Metal Tube
60W/80W RF Metal Tube
60W/80W/100w/120w RF Metal Tube
80W/100w/120w RF Metal Tube
Intelligent Memory Capacity
Multiple File Storage up to 1GB
Multiple File Storage up to 1GB
Multiple File Storage up to 1GB
Multiple File Storage up to 1GB

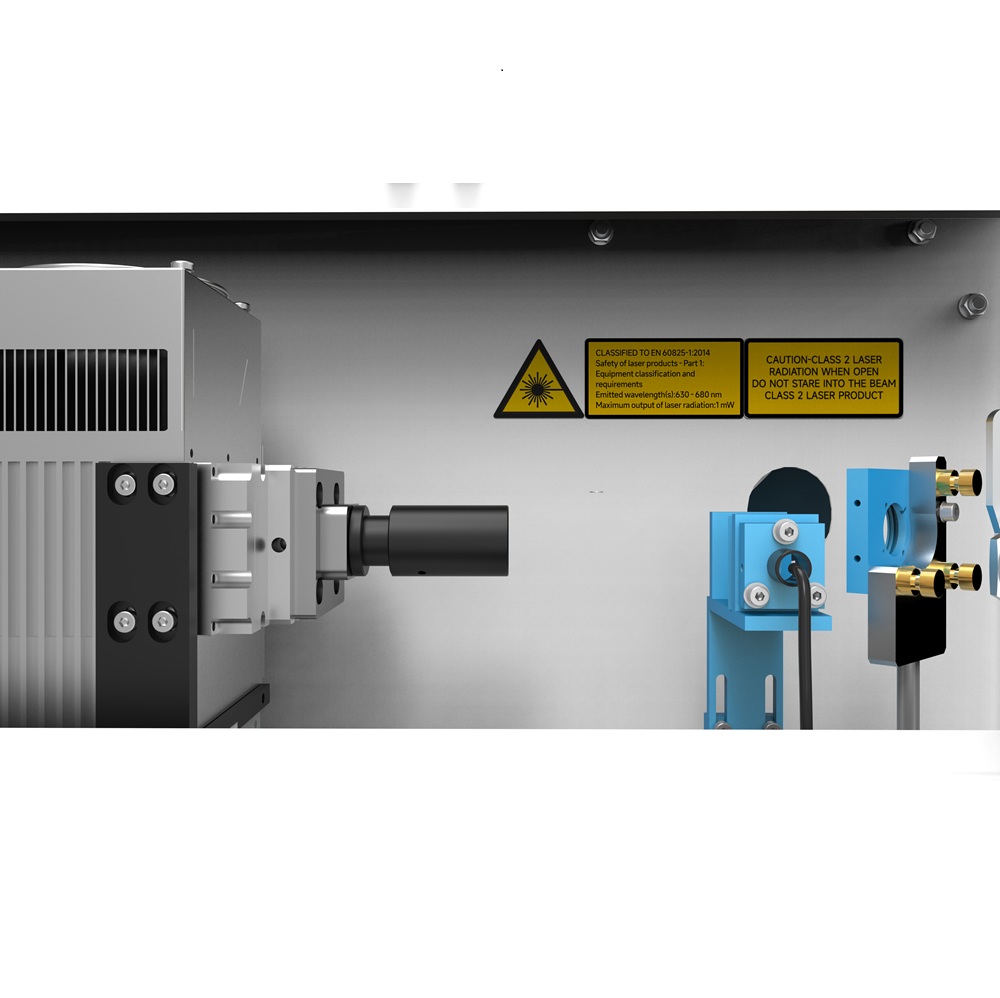

Laser Source
CO2 RF Metal Tube, Unmatched laser precision. Average lifespan: 10,000 working hours
CO2 RF Metal Tube, Unmatched laser precision. Average lifespan: 10,000 working hours
CO2 RF Metal Tube, Unmatched laser precision. Average lifespan: 10,000 working hours
CO2 RF Metal Tube, Unmatched laser precision. Average lifespan: 10,000 working hours
Electrical Requirements
Standard 110v AC 60Hz Single Phase, dedicated 20A circuit
Standard 110v AC 60Hz Single Phase, dedicated 20A circuit
– 60w/80w: Standard 110v AC 60Hz Single Phase, dedicated 20A circuit
– 100w/120w: 220v AC 60Hz Single Phase, dedicated 20A circuit
– 80w: Standard 110v AC 60Hz Single Phase, dedicated 20A circuit
– 100w/120w: 220v AC 60Hz Single Phase, dedicated 20A circuit

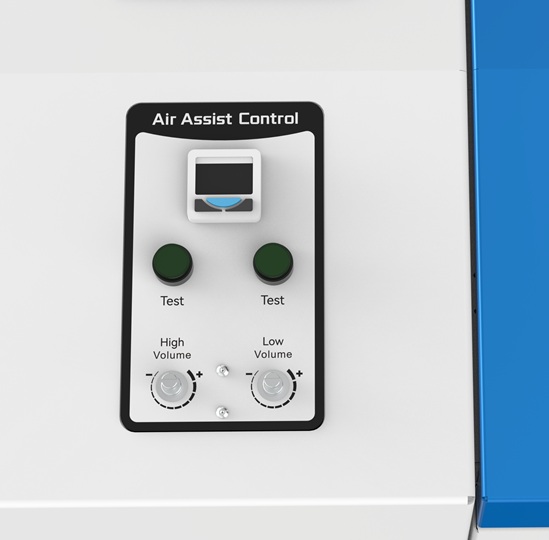

Air Assist
Air pump 5-7 psi included
Air pump 5-7 psi included
Air pump 5-7 psi included
Air pump 5-7 psi included
Software
LightBurn Software included for two computers; supports Windows, Mac, and Linux
LightBurn Software included for two computers; supports Windows, Mac, and Linux
LightBurn Software included for two computers; supports Windows, Mac, and Linux
LightBurn Software included for two computers; supports Windows, Mac, and Linux
Red Dot Pointer
Shows where laser will fire; easy positioning
Shows where laser will fire; easy positioning
Shows where laser will fire; easy positioning
Shows where laser will fire; easy positioning
Camera System
Comes with an over-head camera as standard
Comes with an over-head camera as standard
Comes with an over-head camera as standard
Comes with an over-head camera as standard
Operating Modes
Optimized raster, vector, or combined modes
Optimized raster, vector, or combined modes
Optimized raster, vector, or combined modes
Optimized raster, vector, or combined modes
Easy Adjustable Home
New home position can be set by hand for items not easily placed in the top corner
New home position can be set by hand for items not easily placed in the top corner
New home position can be set by hand for items not easily placed in the top corner
New home position can be set by hand for items not easily placed in the top corner
Motion Control System
LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8″/second)
LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8″/second)
LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8″/second)
LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8″/second)
Resolution
Up to 1,000dpi with included 2.5″ head or 2,000dpi with 1.5″ head
Up to 1,000dpi with included 2.5″ head or 2,000dpi with 1.5″ head
Up to 1,000dpi with included 2.5″ head or 2,000dpi with 1.5″ head
Up to 1,000dpi with included 2.5″ head or 2,000dpi with 1.5″ head
Safety
Open cover protection, no-air assist protection, heat alarm system
Open cover protection, no-air assist protection, heat alarm system
Open cover protection, no-air assist protection, heat alarm system
Open cover protection, no-air assist protection, heat alarm system
Auto Focus
Infrared Auto-Focus system for easy focusing
Infrared Auto-Focus system for easy focusing
Infrared Auto-Focus system for easy focusing
Infrared Auto-Focus system for easy focusing
Cooling
Air Cooling
Air Cooling
60w/80w: Air Cooling
100w/120w: Water Cooling
80w: Air Cooling
100w/120w: Water Cooling
Motorized Table
Includes removable honeycomb and solid metal blade (knife-style) bed
Includes removable honeycomb and solid metal blade (knife-style) bed
Includes removable honeycomb and solid metal blade (knife-style) bed
Includes removable honeycomb and solid metal blade (knife-style) bed

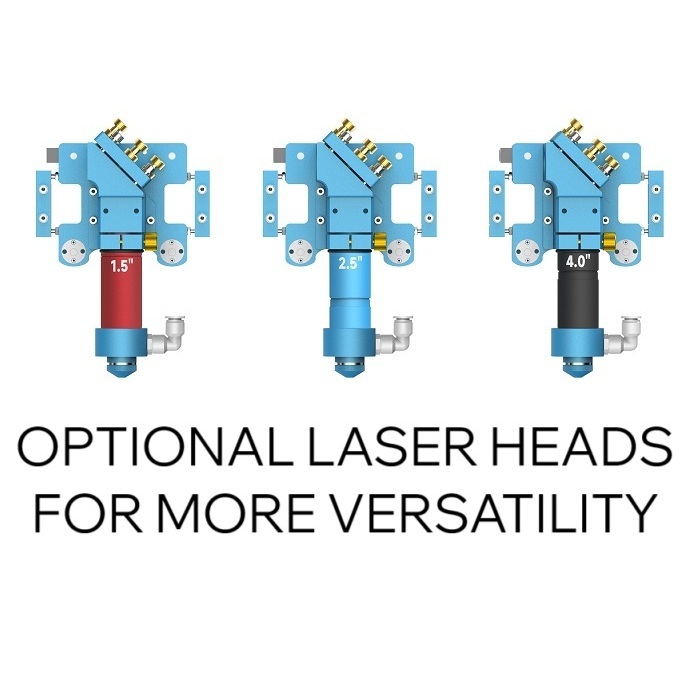

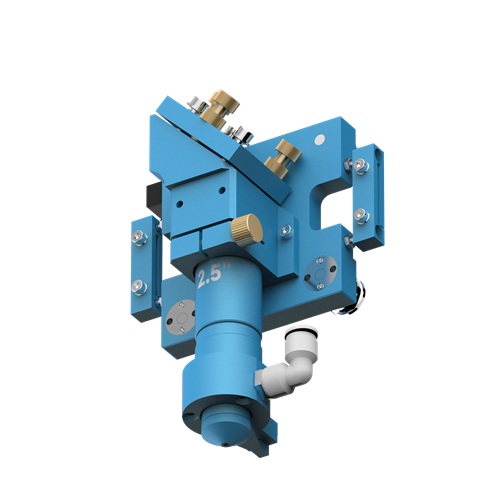

Laser Heads
2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available
2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available
2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available
2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available
TL-Timer™ (Smart Board)
Relay switch controls exhaust and air assist, stops accessories when laser is not working
Relay switch controls exhaust and air assist, stops accessories when laser is not working
Relay switch controls exhaust and air assist, stops accessories when laser is not working
Relay switch controls exhaust and air assist, stops accessories when laser is not working
Warning Light
Red light means working, and green light means safe
Red light means working, and green light means safe
Red light means working, and green light means safe
Red light means working, and green light means safe
Warranty
The whole machine is under warranty for two years, and the RF tube is for one year
The whole machine is under warranty for two years, and the RF tube is for one year
The whole machine is under warranty for two years, and the RF tube is for one year
The whole machine is under warranty for two years, and the RF tube is for one year
Frequently Asked Questions
How much space do I need?
Our Bolt desktop machines are intended to fit in small spaces or on a desk. You will need roughly 3′ x 3′ or clear space.
How do I choose the right laser machine for my needs?
Choosing the right laser can be daunting, but we are here to help! The best way to figure this out is to call us or set up a time to speak to one of our laser experts. They will ask you questions about what you’d like to create and help you find a machine to suit your needs and budget.
The main things to consider are:
- How much space do I have?
- What materials do I want to cut or engrave?
- How thick of material do I want to be able to cut?
- What is my budget?
- Am I going to be doing production runs or one-off projects?
We’ve written a
more in-depth article on this here
All these lasers look the same to me. What makes Thunder different?
Great question! This question would be best answered by one of our laser experts, but here is some general info as you are looking at different lasers.
- We are much faster than many other brands, for starters. Check out this video for a speed comparison against a Glowforge. In this example, the Thunder machine finished in 3 minutes and the Glowforge finished in 13 minutes, making Thunder over FOUR TIMES FASTER.
- We do not participate in affiliate programs. These programs are an excellent marketing tool, but at the end of the day, they cost the consumer money. Rest assured, you are getting the most bang for your buck at Thunder Laser!
- Our customer support is, by far, the best in the industry. Just look at our reviews
- Our machines are incredibly well-made by our factory in China. The Quality Control that goes into these machines is what you’d expect from a product from America or Germany. There are a lot of companies out there that buy cheap Chinese lasers, re-wire them or improve them in some other way, and claim they are made in the USA. A machine that is well-built the first time means less down time for our customers.
- Our software does not require an internet connection. This is crucial because if your internet (or their server) goes down, you are out of luck. Additionally, cloud-based services often take a very long time to process designs and you may not technically own the design.
At Thunder, you will get the quality of an enterprise-grade machine for a fraction of the cost.
For a more in-depth answer to this question, please give us a call or schedule some time to speak to one of our expert
How hard are the machines to setup?
Setting up our machines is surprisingly straightforward. Typically, we can unbox and set them up in just 30 minutes at a trade show. Unlike many lasers that necessitate a complex alignment upon arrival, our machines are robustly constructed to maintain alignment during transit. This design philosophy ensures that if a machine is prone to misalignment during shipping, it’s likely to require frequent realignments, leading to lost time and unnecessary frustration for you. With our machines, you can expect consistent, hassle-free performance.
What training resources are available for new users?
We know purchasing a laser can be daunting at first, but we are here to help! There are TONS of resources to help get you going. Check out our Training Academy and our YouTube.
In addition to that, we have the Official Facebook Group, tons of YouTube videos, and a Knowledge Base with over 400 articles. In addition, all of our lasers come with a FREE hour of virtual training with one of our technicians.
What technical support is available for Thunder Laser machines?
Thunder Laser UK has the best support in the industry, bar none. We consistently receive praise from our customers about how they are treated: before, during, and after the sale. We offer technical assistance through phone, email, and online resources. Our team of experts is available to help with troubleshooting, maintenance, and any questions you may have. They are incredibly quick to respond. Please check out our reviews to see what other customers have said about our service.
